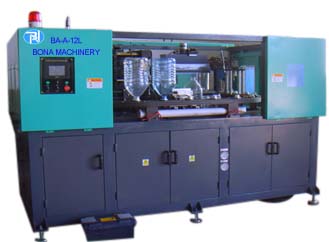

1, BA-hand insert-12L technical parameter:
1.1,Dimension:2900*1800*1900mm；
1.2,theoratical output:6L -12L (400-600pcs/hour)
1.3, The main structure is made of #63 channel steel, welded
by A3 folding, the surface (blue as basic color) is treated with plastic ejection.
the whole structure is delicate and durable.
1.4, Automatic preform-feeding for conveyor, it is easy to operate by only putting a certain quantities of preforms inside the feeding bucket. The movement of feeding,heating,blowing and finished bottle transferring is done automatically.
1.5, Preforms are transferred to the heater through rotating and passing-one-by-one to ensure being heated evenly.
1.6, PLC panel adopts Delta to make the machine stable and reliable.
1.8, Voltage:3P 380V 60Hz(can be adjusted according to clients' requirement)
1.9,Rated power capacity:30KW. Practical power capacity:15KW.
1.10,Clamping force:240KN
1.11,Openning stroke:200-400mm
|
