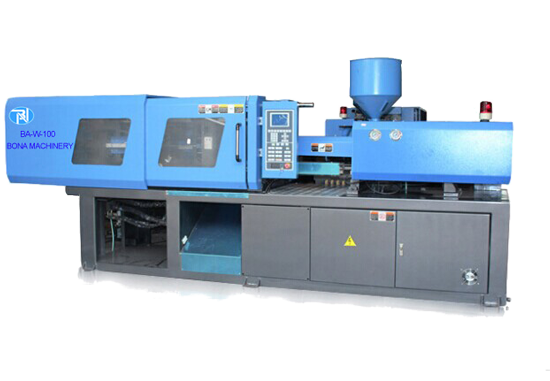

BA-W-100 注塑机

详情

Products

Technical Specifications:

SPECIFICATION		BA-W-100
SPECIFICATION		A	B	C
INJECTION UNIT
SCREW DIAMETER	MM	35	38	40
SCREW L/D RATIO		21.7	20	19.5
SHOT VOLUME(THEORETICAL)	CMS	139	180	200
INJECTION WEIGHT(PS)	G	125	162	180
INJECTION RATE	G/S	70	82	100
PLASTICIZING CAPACITY	G/S	9	10.6	13
INJECTION PRESSURE	MPA	208	176	144
SCREW SPEED	r.p.m	0-200
CLAMPING UNIT
CLAMP FORCE	KN	1000
SPACE BETWEEN TIE BARS(W*H)	mm	355x355
OPEN STROKE	mm	320
MAX.MOULD HEIGHT	mm	360
MIN.MOULD HEIGHT	mm	150
EJECTOR STROKE	mm	100
EJECTOR FORCE	KN	40
EJECTOR QUANTITY	Piece	5
OTHER
MAX.PUMP PRESSURE	mpa	14.5
PUMP MOTOR POWER	kw	9
HEATING POWER	kw	5.8
OILTANK CUBAGE	L	180
MACHINE DIMENSION(LWH)	m	3.8X1.2X1.6
MACHINE WEIGHT	T	3
