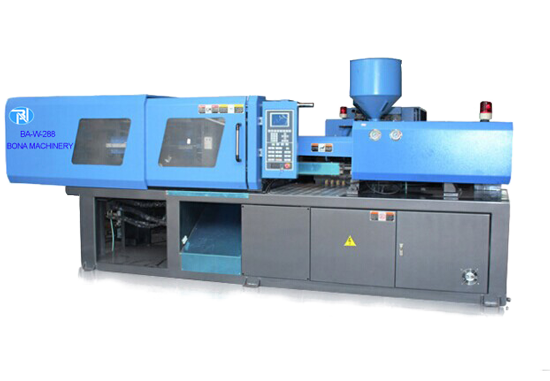

BA-W-288 注塑机

详情

Products

Technical Specifications:

SPECIFICATION		BA-W-288
SPECIFICATION		A	B	C
INJECTION UNIT
SCREW DIAMETER	MM	55	60	65
SCREW L/D RATIO		21.7	20	18.4
SHOT VOLUME(THEORETICAL)	CMS	719	857	979
INJECTION WEIGHT(PS)	G	654	779	890
INJECTION RATE	G/S	223	226	312
PLASTICIZING CAPACITY	G/S	28.9	31.6	34.7
INJECTION PRESSURE	MPA	216	182	155
SCREW SPEED	r.p.m	0-180
CLAMPING UNIT
CLAMP FORCE	KN	2880
SPACE BETWEEN TIE BARS(W*H)	mm	580x580
OPEN STROKE	mm	550
MAX.MOULD HEIGHT	mm	630
MIN.MOULD HEIGHT	mm	230
EJECTOR STROKE	mm	155
EJECTOR FORCE	KN	70
EJECTOR QUANTITY	Piece	9
OTHER
MAX.PUMP PRESSURE	mpa	16
PUMP MOTOR POWER	kw	22
HEATING POWER	kw	16
OILTANK CUBAGE	L	380
MACHINE DIMENSION(LWH)	m	5.18x1.8x2.1
MACHINE WEIGHT	T	9
