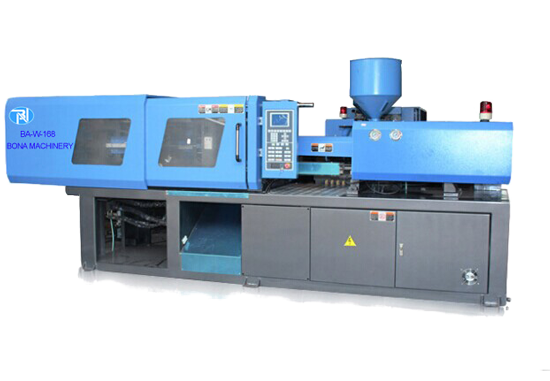

BA-W-168 injection machine
Detail
|
|
Technical Specifications:
|
|
|
SPECIFICATION
|
BA-W-168
|
|
A
|
B
|
C
|
|
INJECTION UNIT
|
|
|
SCREW DIAMETER
|
MM
|
40
|
45
|
48
|
|
SCREW L/D RATIO
|
|
23.3
|
20.7
|
19.4
|
|
SHOT VOLUME(THEORETICAL)
|
CMS
|
300
|
380
|
432
|
|
INJECTION WEIGHT(PS)
|
G
|
270
|
342
|
389
|
|
INJECTION RATE
|
G/S
|
104
|
131
|
150
|
|
PLASTICIZING CAPACITY
|
G/S
|
18.5
|
21.7
|
24
|
|
INJECTION PRESSURE
|
MPA
|
196
|
156
|
136
|
|
SCREW SPEED
|
r.p.m
|
0-185
|
|
CLAMPING UNIT
|
|
|
CLAMP FORCE
|
KN
|
1680
|
|
SPACE BETWEEN TIE BARS(W*H)
|
mm
|
462x462
|
|
OPEN STROKE
|
mm
|
430
|
|
MAX.MOULD HEIGHT
|
mm
|
500
|
|
MIN.MOULD HEIGHT
|
mm
|
180
|
|
EJECTOR STROKE
|
mm
|
130
|
|
EJECTOR FORCE
|
KN
|
45
|
|
EJECTOR QUANTITY
|
Piece
|
5
|
|
OTHER
|
|
|
MAX.PUMP PRESSURE
|
mpa
|
16
|
|
PUMP MOTOR POWER
|
kw
|
15
|
|
HEATING POWER
|
kw
|
9.5
|
|
OILTANK CUBAGE
|
L
|
300
|
|
MACHINE DIMENSION(L*W*H)
|
m
|
5.2X1.35X2.05
|
|
MACHINE WEIGHT
|
T
|
5
|
|
|
