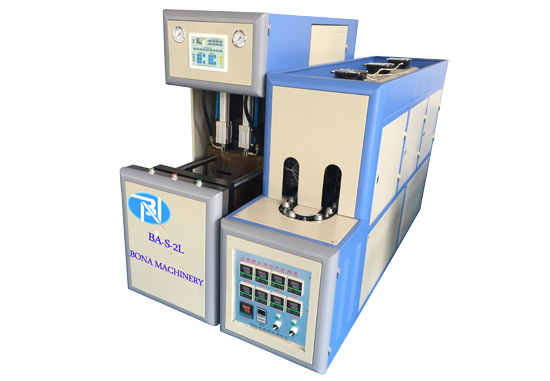

BA-S-2L baby bottle semi-automatic blowing machine

Detail
Information
|

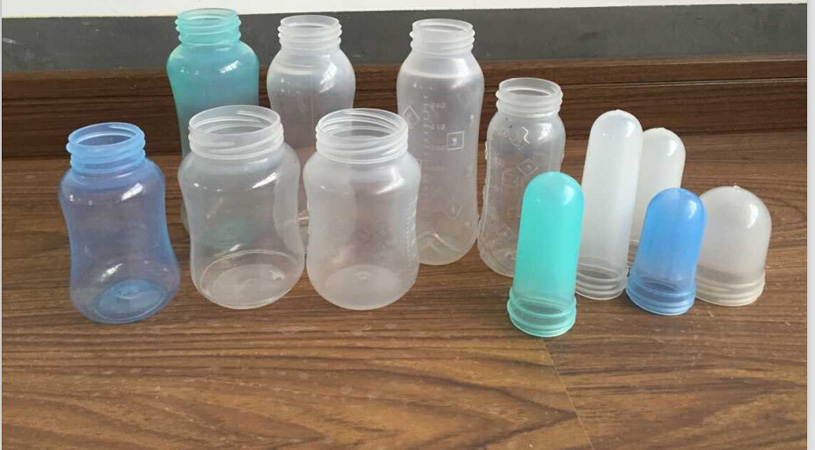

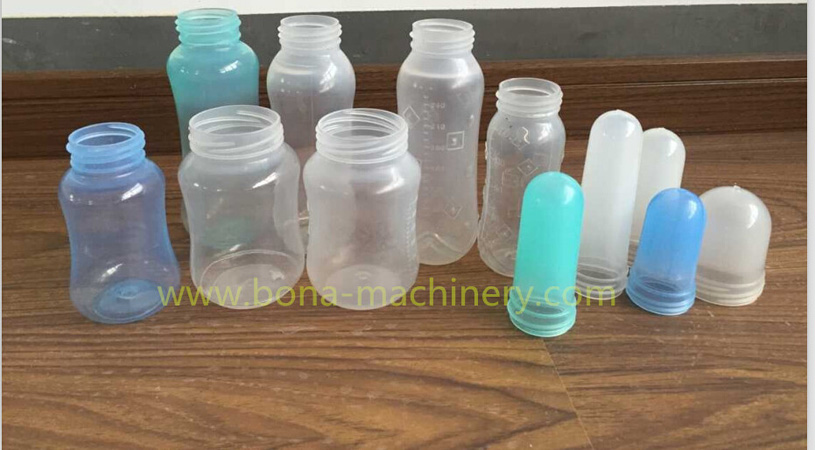

The machine adopts revolving infrared pre-heat system. It ensures preforms be heated evenly.

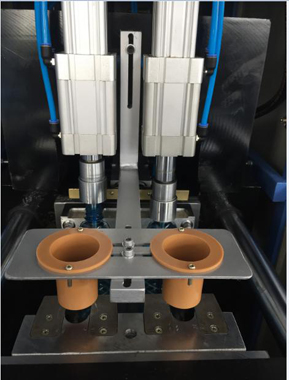

The machine uses mechanical-double-arm mould clamping which ensures the mould will be closed tightly even under high pressure and high temperature.

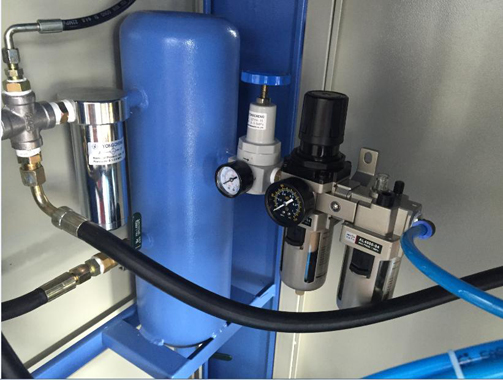

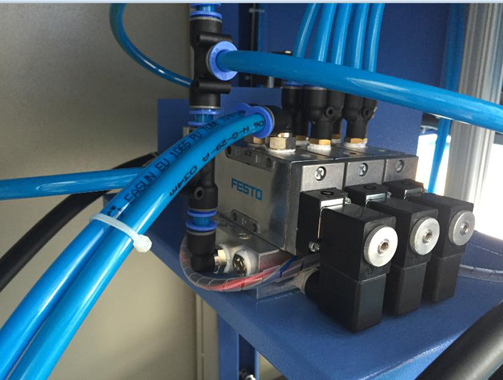

The air system consists of two parts: pneumatic action part and bottle blow part to meet the different pressure requirements for the action and blowing. It can provide sufficient and steady high pressure for blowing large irregular shape bottles.
The machine is also equipped with silencer and oiling system to lubricate the mechanical parts of the machine.
The machine can be operated in the step-by-step mode and the semi-auto mode.
|
Technical Specifications:
|
Type
|
Item
|
Measurement
|
BA-S-2L
|
End Product
|
Material
|
|
PET/PP/PMMA
|
Volume
|
L
|
0.05-2.5(2-Cavity) 3-6(1-Cavity)
|
Theoretical output
|
Purchase/h
|
0.05-2.5L:850 3-6L:400
|
Max.length
|
mm
|
360
|
Max.diameter
|
mm
|
180
|
Mould Plate
|
Max.mould Plate Dimension(L×H)
|
mm
|
420x500
|
Max.mould Thickness
|
mm
|
160-240
|
Clamping Force
|
KN
|
180
|
Mould Opening Stroke(Adjustable)
|
mm
|
200
|
Auxiliary
|
High Pressure Compressor
|
M?/Mpa
|
≥1.2/3.0×1 set
|
Precision Air Filters
|
M?/Mpa
|
≥1.0/3.0×2 pcs
|
Main Machine Electricity
|
Power
|
KW
|
6
|
Voltage/Frequency
|
V/Hz
|
220/380/50-60
|
Machine Size And Weight
|
Blow Units Dimension(L×W×H)
|
M
|
1.53×0.6×2.0
|
Blow Units Weight
|
T
|
0.6
|
Pre-heater Dimension(L×W×H)
|
M
|
2.30×0.66×1.59
|
Pre-heater Weight
|
T
|
0.35
|
Safety
|
Auto-emergency Alarm
|
Safety Inter-locking Device
|
|
|
