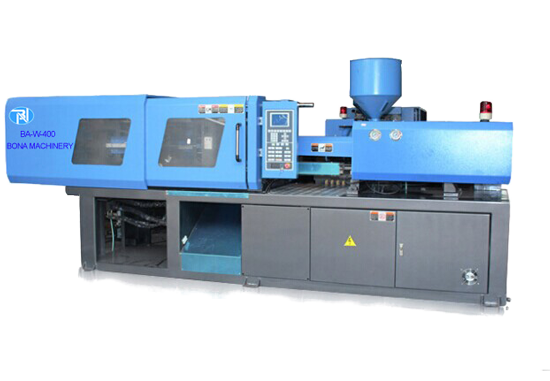

BA-W-400 injection machine
Detail
|
|
Technical Specifications:
|
|
|
SPECIFICATION
|
BA-W-400
|
|
A
|
B
|
C
|
|
INJECTION UNIT
|
|
|
SCREW DIAMETER
|
MM
|
65
|
70
|
75
|
|
SCREW L/D RATIO
|
|
23.7
|
21
|
19.5
|
|
SHOT VOLUME(THEORETICAL)
|
CMS
|
1293
|
1500
|
1720
|
|
INJECTION WEIGHT(PS)
|
G
|
1160
|
1350
|
1545
|
|
INJECTION RATE
|
G/S
|
300
|
348
|
400
|
|
PLASTICIZING CAPACITY
|
G/S
|
37.4
|
43.4
|
49.8
|
|
INJECTION PRESSURE
|
MPA
|
208
|
180
|
156
|
|
SCREW SPEED
|
r.p.m
|
0-150
|
|
CLAMPING UNIT
|
|
|
CLAMP FORCE
|
KN
|
4000
|
|
SPACE BETWEEN TIE BARS(W*H)
|
mm
|
720x720
|
|
OPEN STROKE
|
mm
|
700
|
|
MAX.MOULD HEIGHT
|
mm
|
850
|
|
MIN.MOULD HEIGHT
|
mm
|
280
|
|
EJECTOR STROKE
|
mm
|
180
|
|
EJECTOR FORCE
|
KN
|
130
|
|
EJECTOR QUANTITY
|
Piece
|
13
|
|
OTHER
|
|
|
MAX.PUMP PRESSURE
|
mpa
|
16
|
|
PUMP MOTOR POWER
|
kw
|
37
|
|
HEATING POWER
|
kw
|
23.5
|
|
OILTANK CUBAGE
|
L
|
530
|
|
MACHINE DIMENSION(L*W*H)
|
m
|
8.1x2.1x2.9
|
|
MACHINE WEIGHT
|
T
|
17
|
|
|
