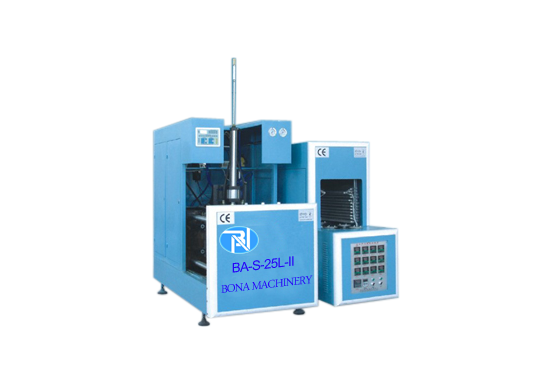

BA-S-25L-II lamps semi-automatic blowing machine
Detail
|
|
Features:
|

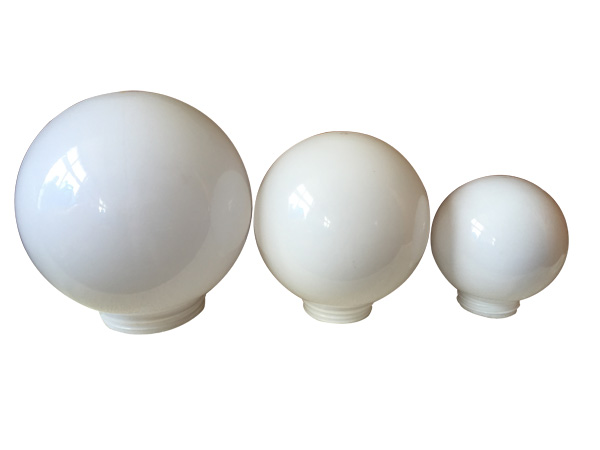

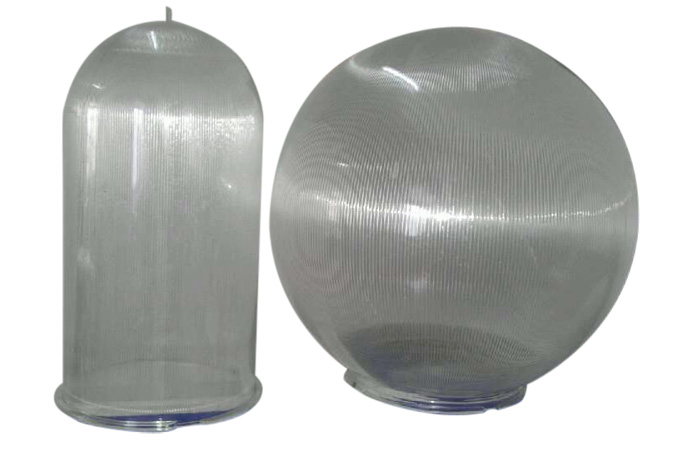

BA-S-25L semi-auto Blow Moulding Machine is specially designed for blowing PET/PMMA/PC globes for lighting.
|
|
TECHNICAL PARAMETER
|
|
|
BA-S-25L-II
|
Main Technical Data
|
|
Force of Closing Mould
|
220KN
|
|
Productive Capacity
|
100PCS
|
|
Max Volume of Product
|
Φ450
|
|
Working Air Pressure of Mainframe
|
1.0Mpa
|
|
Blowing Air Pressure
|
2.0-3.0Mpa
|
|
Voltage (3-phase 1-phase)
|
380/240/110V
|
|
Heating Power
|
15KW
|
|
Max Stretch Length
|
550mm
|
|
Max Mould Thickness
|
350mm
|
|
Allowed Mould Thickness
|
280-450mm
|
|
Allowed Mould Width
|
550mm
|
|
Size of Main Frame (L.W.H)
|
2300×990×2300mm
|
|
Size of Oven(L.W.H)
|
2700×650×1660mm
|
|
|
