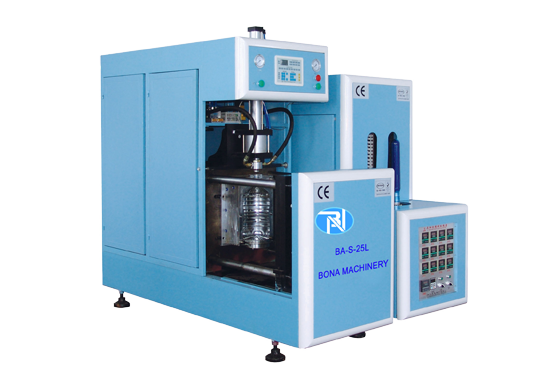

BA-S-25L semi automatic blowing machine

   Machine details

   Products

   Information

1. Specification of BA-S-25L:

1.1. Main frame dimension: 2300(L)*740(W)*2000(H)mm;

Heater dimension: 2660(L)*650(W)*1660(H)mm;

1.2. Theoretical output : 100pcs/H;

1.3, The main structure is welded by Q235B 200*70 channel steel and heater is made of 40*40*1.5 square tube. the surface is treated with paint ejection. the whole structure is delicate and durable.

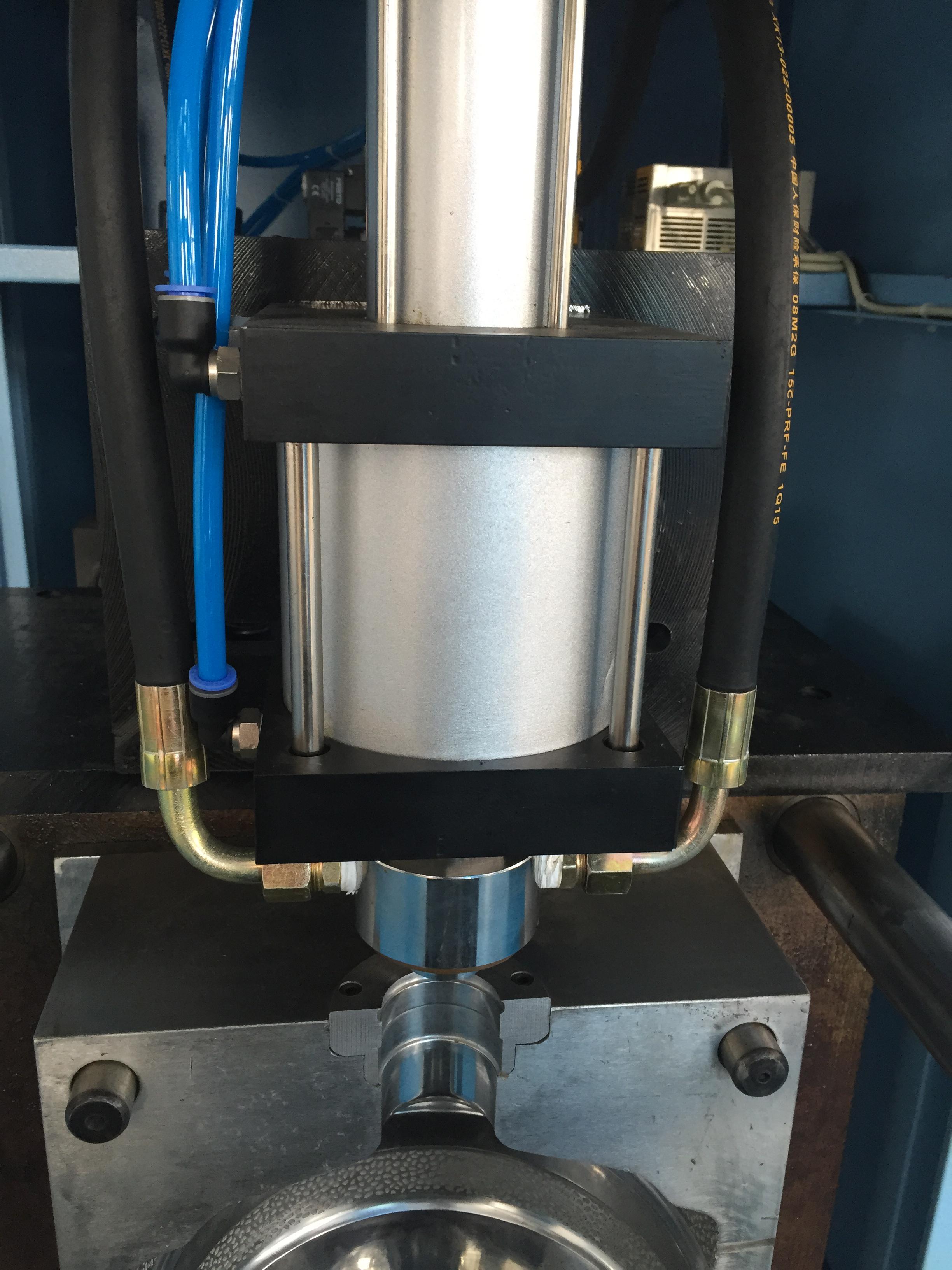

1.4 Mould clamping system is processed precisely to ensure the stability.

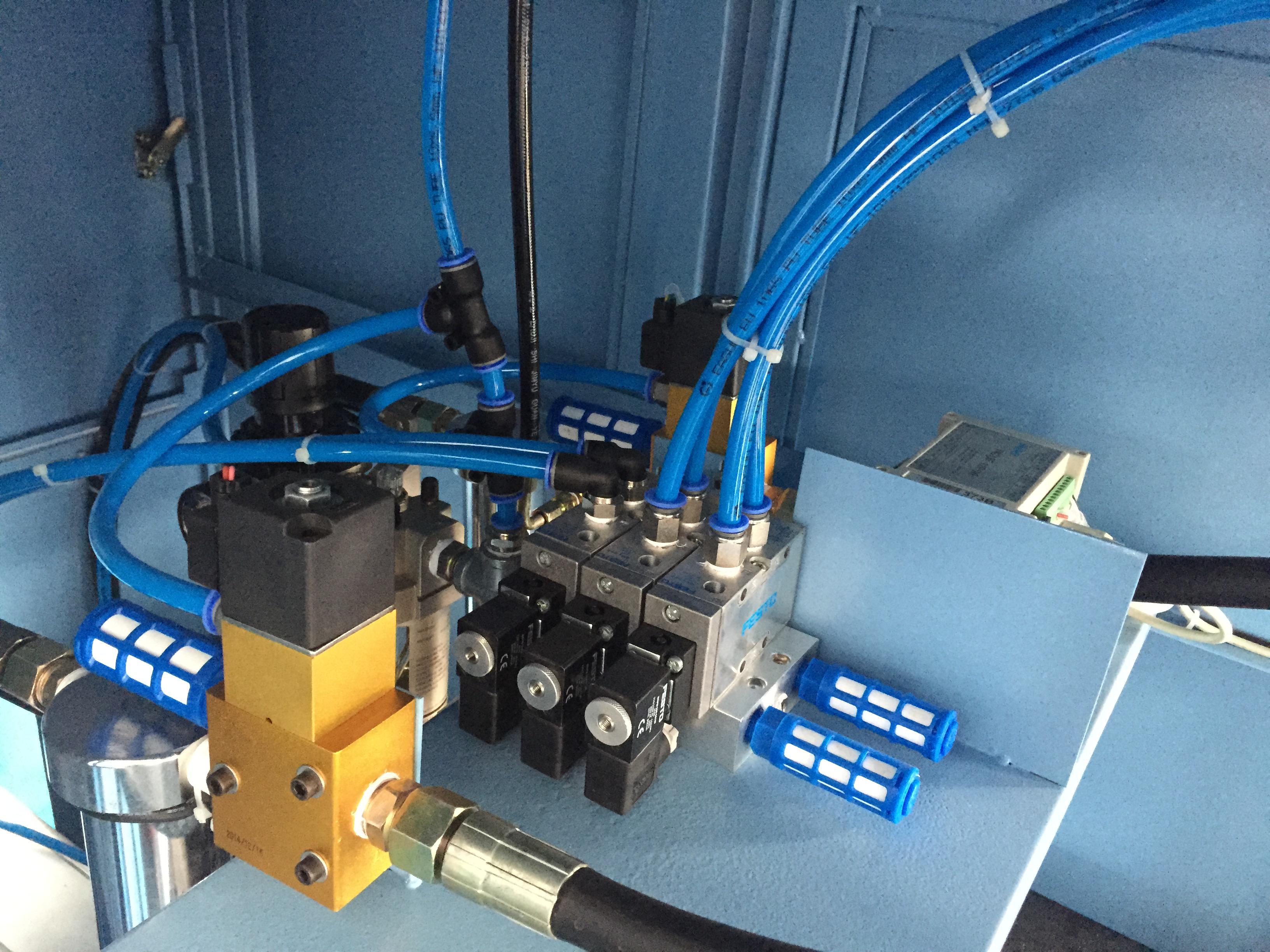

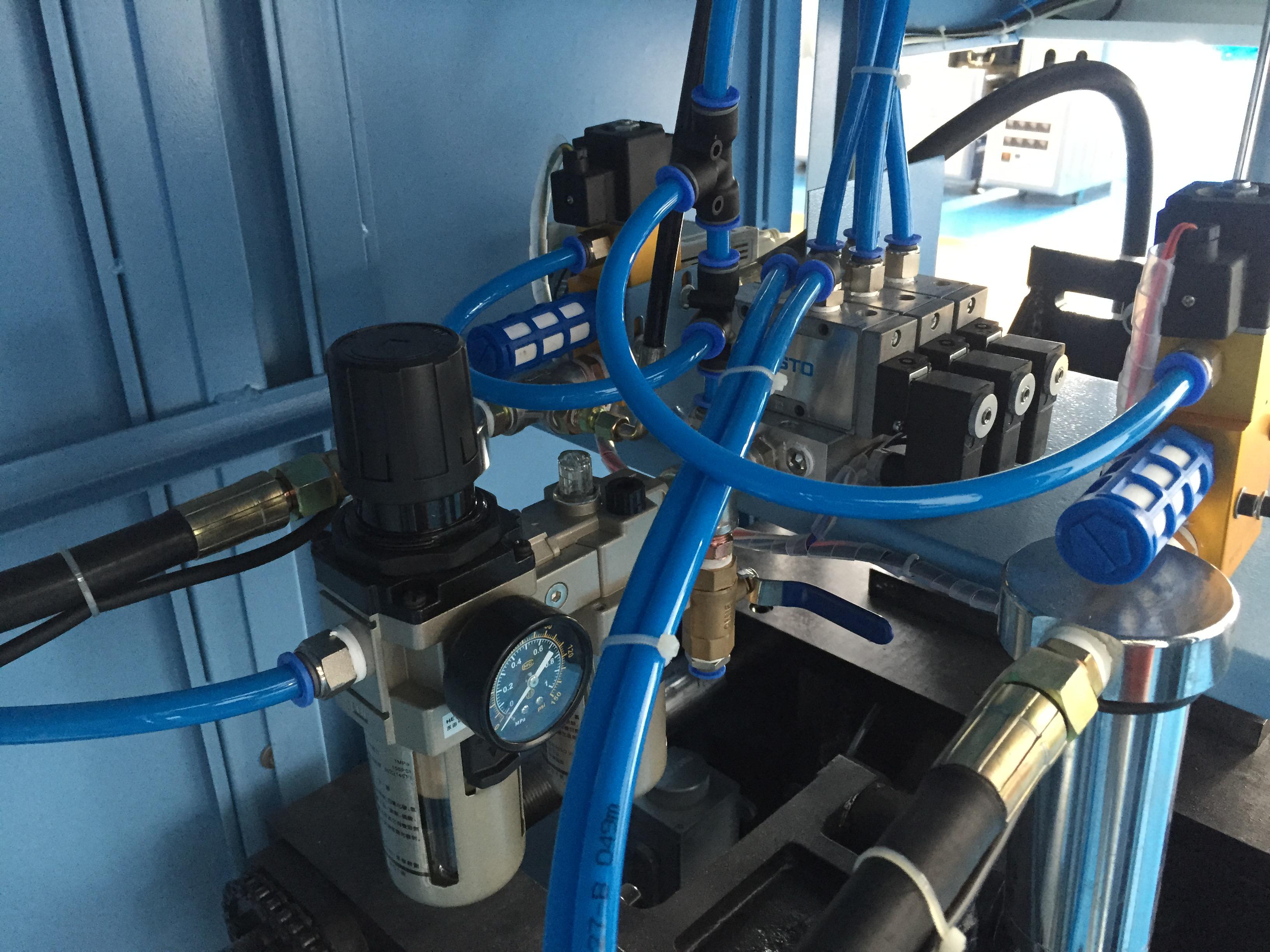

1.5, Main pneumatic components adopt Germany FESTO brand, others are from domestic.

1.6, Preforms are rotating in the heater to ensure being heated evenly.

1.7, PLC panel adopts from domestic (Mitsubish is selectable) to make the machine stable and reliable.

   Competitive advantages

2.1. Perfect function with economical investment.

2.2 Small size and compact construction with no space waste.

2.3. Easy to operate and maintain, operated by one person.

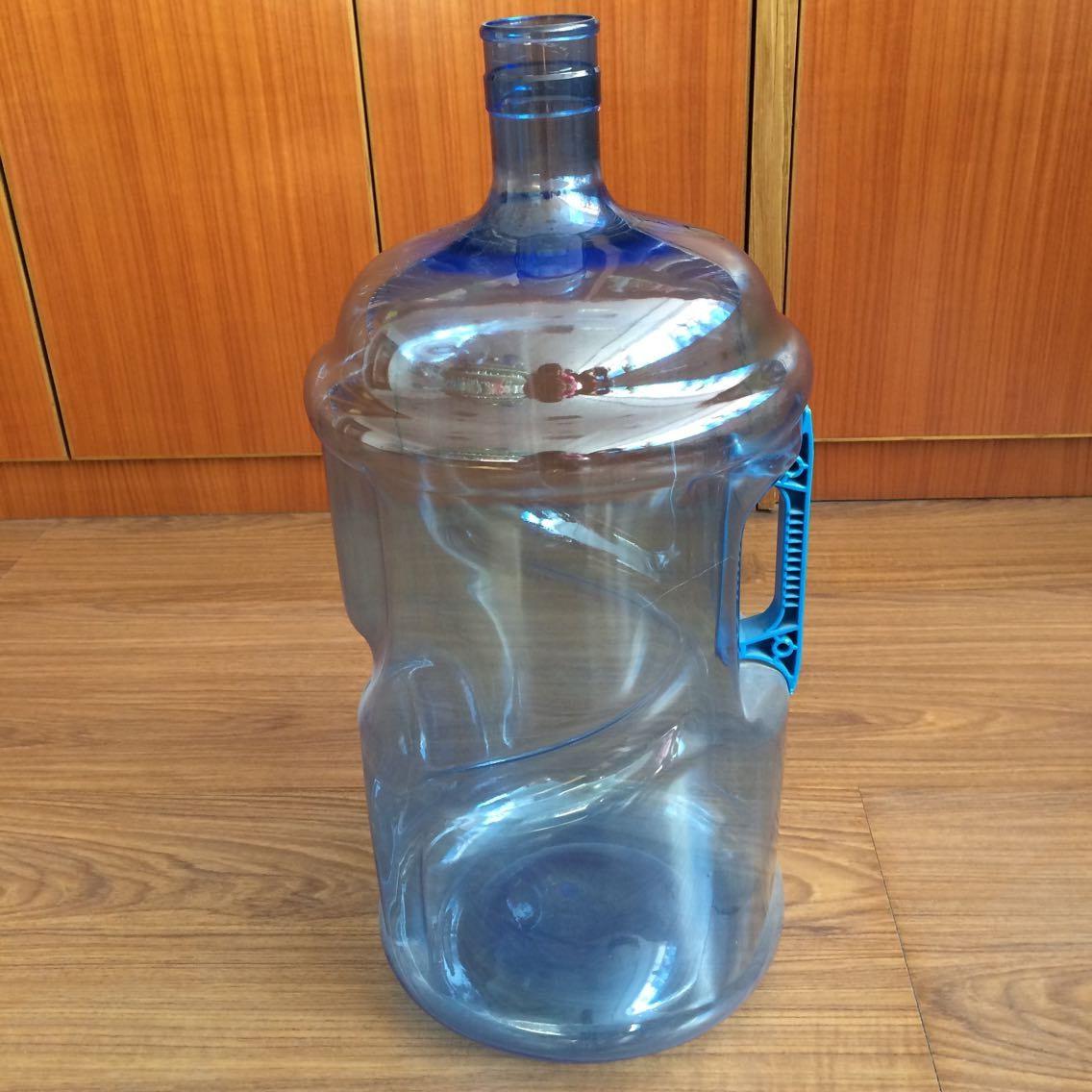

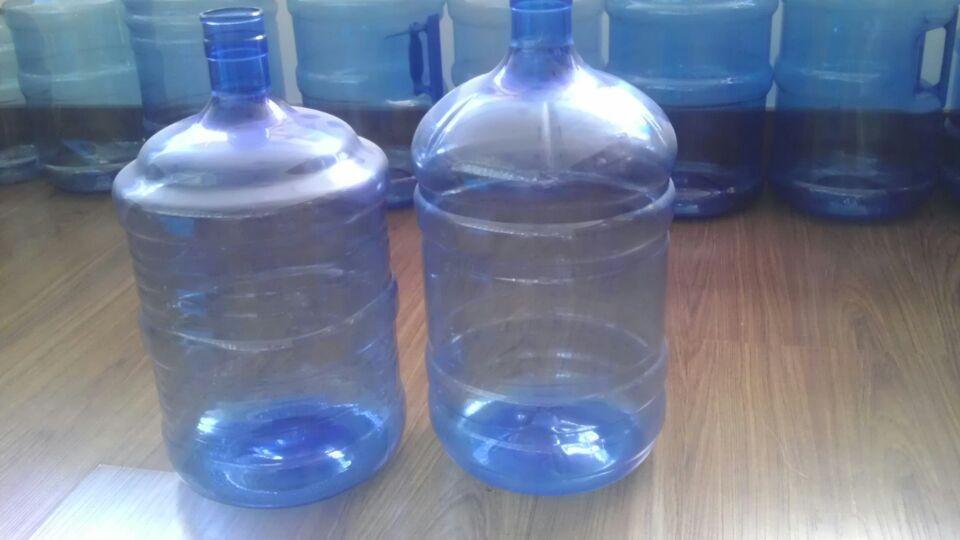

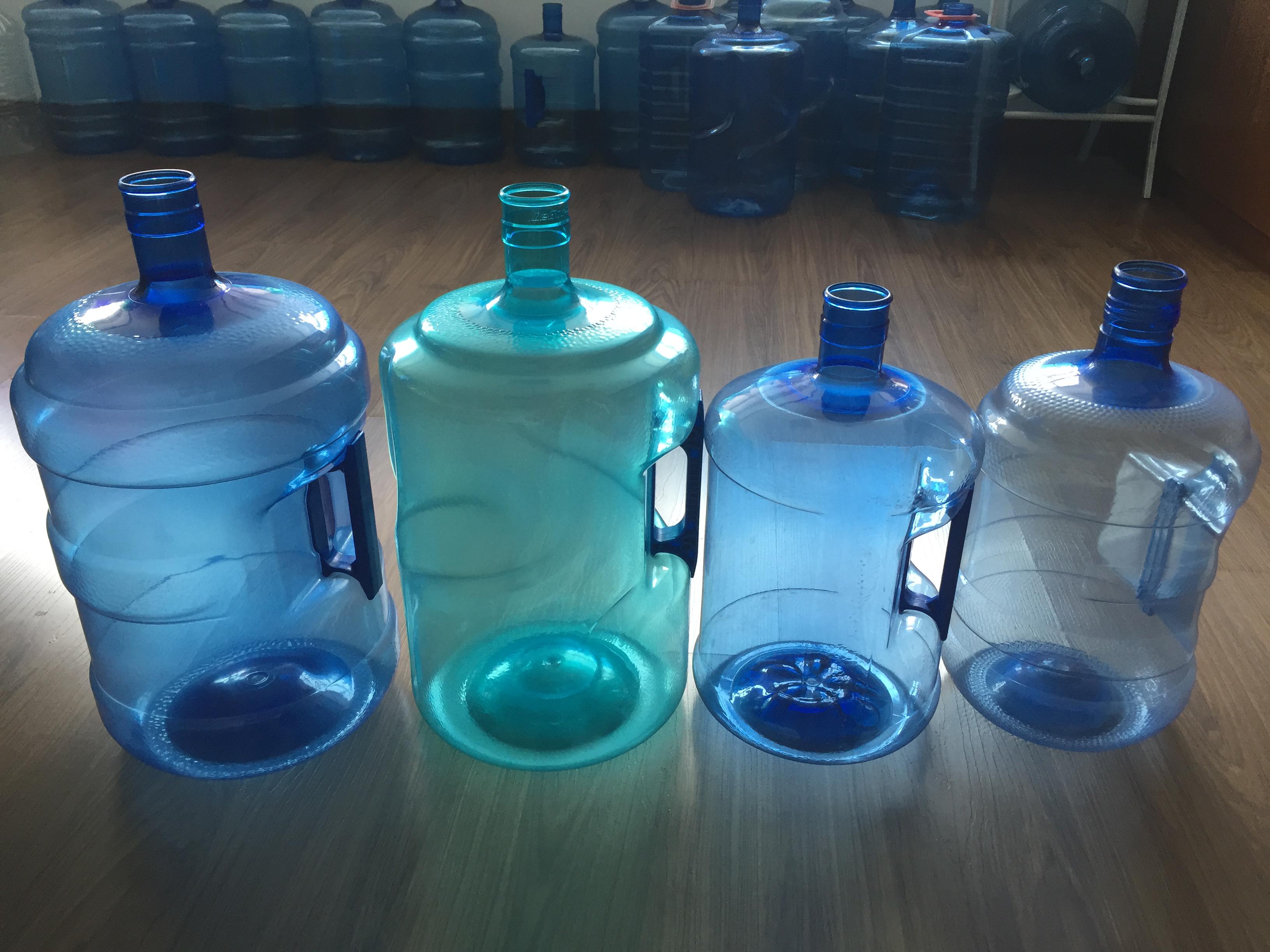

2.4. We are also a special manufacturer of 5 gallon PET preforms, one of the largest in China, we are quite keen and have richer experience in temperature/blowing settings.

   Terms of sales condition:

Delivery time: within 20 days

Guarantee: 12 months.

Packing:woodern case

Certification:CE

Payment: TT/LC at sight
