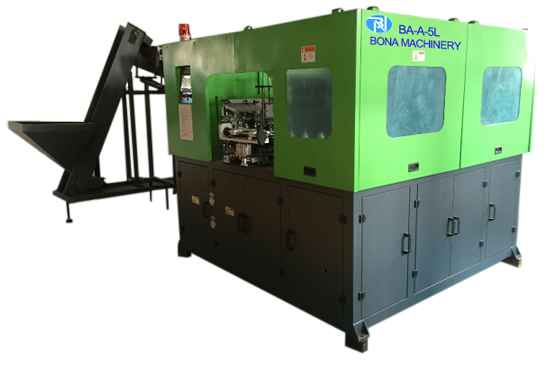

BA-A-5L full automatic blowing machine
Detail
|
|
Information
|
|
Automatic Stretch Blow Molding Machine Features:
BA-A- 5LStretch Blow Moulding Machine is suitable for producing PET/PC/PP, plastic containers and bottles in all shapes.
It is widely used to produce the carbona ted bottle, mineral water, pesticide bottle, oil bottle, cosmetics, wide-mouth bottle and hot fill bottle, etc.

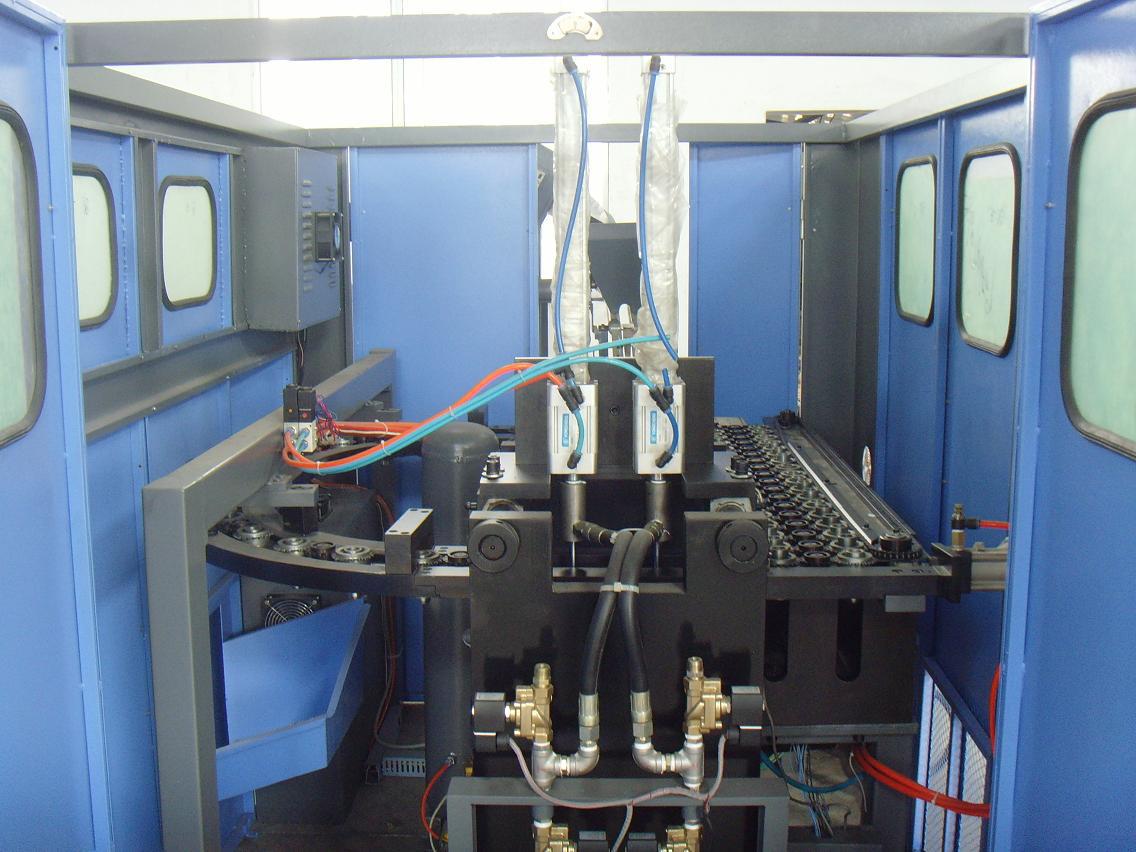

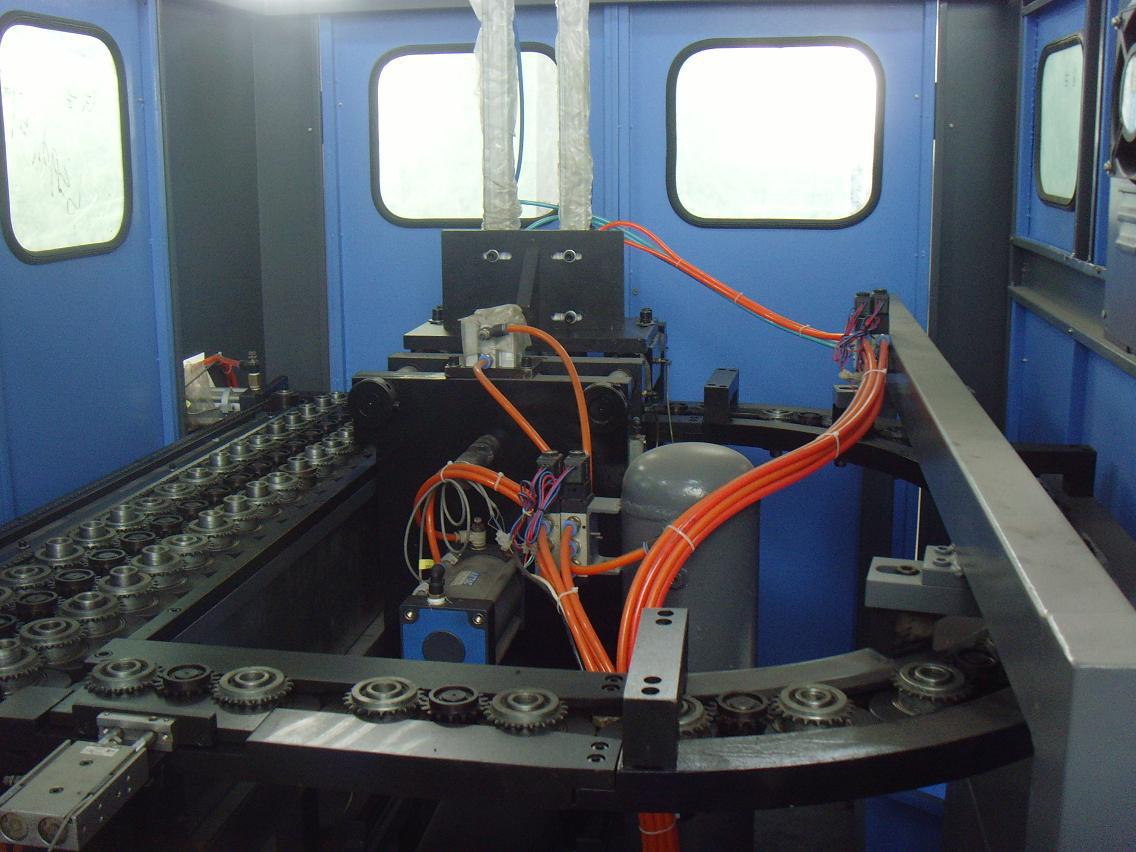

Feeding system carries the preforms by robot automatically.
Fully automatic process with low investment, high efficiency, quick and safe operation, easy for trouble-shooting, maintenance and other benefits.
|
|
Bottle Blowing Machine Technical Specification
|
|
|
Type
|
Item
|
Measurement
|
BA-A-5L
|
|
2-Cavity
|
4-Cavity
|
|
Endproduct
|
Material
|
|
PET/PP/PC
|
PET/PP/PC
|
|
Volume
|
L
|
0.05-2.5(2-cavity) 3-6(1-cavity)
|
0.05-2.5L(4-cavity) 3-5L(2-cavity)
|
|
Theoretical Output
|
Pcs/h
|
6L:450/2L:1500
|
6L:550/2L:2500
|
|
|
0.5L:1800/0.1L:2000
|
0.5L:3000/0.1L:3500
|
|
Max.length
|
mm
|
350
|
350
|
|
Max.diameter
|
mm
|
35-110(2-cavity)
|
35-110(4-cavity)
|
|
Mouldplate
|
Max.mould Plate Dimension(LxH)
|
mm
|
350x360
|
350x640
|
|
Max.mould Thickness
|
mm
|
180-260
|
180-260
|
|
Clamping Force
|
KN
|
300
|
300
|
|
Mould Opening Stroke(Adjustable)
|
mm
|
180-260
|
180-260
|
|
Auxiliary
|
High Pressure Compressor
|
M?/Mpa
|
≥0.7/3.0x2sets
|
≥1.2/3.0x2sets
|
|
Low Pressure Compressor
|
M?/Mpa
|
≥1.6/1.0x1set
|
≥1.6/1.0x1set
|
|
Air Cooling Dryer
|
M?/Mpa
|
≥1.0/3.0x1set
|
≥1.0/3.0x1set
|
|
Precision Air Filters
|
M?/Mpa
|
≥1.0/3.0x3pcs
|
≥1.0/3.0x3pcs
|
|
High Pressure Air Receiving Tank(DxH)
|
M?/Mpa
|
≥0.6/3.0x1set
|
≥0.6/3.0x1set
|
|
Dimension(LxWxH)
|
M
|
2.2x1.9x2.2
|
2.2x1.9x2.2
|
|
Mainmachine Electricity
|
Power
|
KW
|
15
|
25
|
|
Voltage/Frequency
|
V/Hz
|
220-380/50-60
|
220-380/50-60
|
|
Machinesize And Weight
|
Main body dimension(LxWxH)
|
M
|
2.0x1.4x2.0
|
2.1x1.97x2.07
|
|
Main body weight
|
T
|
2.0
|
3.5
|
|
Conveyor Dimension(LxWxH)
|
M
|
2.0x1.0x2.18
|
2.0x1.0x2.18
|
|
Conveyor Weight
|
T
|
0.4
|
0.4
|
|
Safety
|
Auto-emergency alarm
|
Auto-emergency alarm
|
|
|
