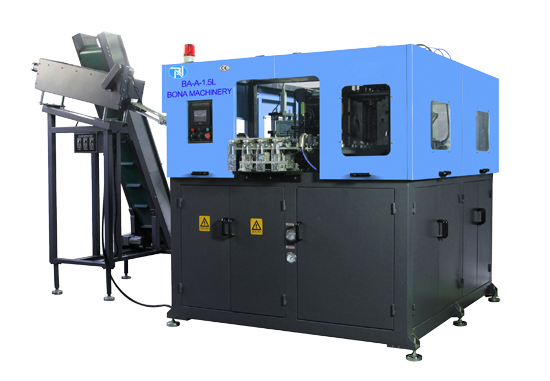

BA-A-1.5L (6cavity) full automatic blowing machine

   Products

   Information

1, Specification of BA-A-1.5L:

1.1,Main machine dimension:L3850*W2300*H2070mm;

1.2,Theoretical output :0.5L 6000pcs/H;

1.3,the main structure is made of #63 channel steel, welded by A3 folding, the surface (blue as basic color) is treated with plastic ejection. the whole structure is delicate and durable.;

1.4,Conveyor system adopts #45 steel, the surface is galvanized.

1.5, Automatic preform-feeding for conveyor, it is easy to operate by only putting a certain quantities of preforms inside the feeding bucket. The movement of feeding,heating,blowing and finished bottle transferring are done automatically.

1.6, Preforms are transferred to the heater through rotating and passing-one-by-one to ensure being heated evenly.

1.7, PLC panel adopts Delta to make the machine stable and reliable.

2.1,voltage of the main blower:3P 380V/50HZ..(adjustable according to the needs of the client)

rate power:60KW;actual power:30KW;

2.2,clamping force:300KN;

2.3,strech distance:200-280mm;

2.4,max plate size:L350*W960mm;
